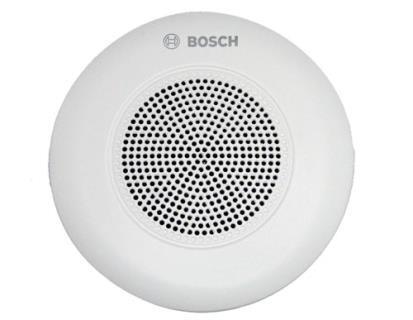

Suitable for music and voice playback Extremely compact size Suitable for use in environments with the presence of moisture, chlorine and salt Selectable 70V, 100V and 8 ohm input EN 54?24 certification Description Ceiling speaker Maximum power 9 W Rated power 6 W (6/3/1.5/0.75 W) Sound pressure level at the power of 6 W/1 W (1 kHz, 1 m) 90 dB/82 dB (SPL) Sound pressure level at the power of 6 W/1 W (1 kHz, 4 m) 76 dB/68 dB (SPL) Opening angle at 1 kHz/4 kHz (-6 dB) 180° / 180° Effective frequency range (-10 dB) 85 Hz to 20 kHz Rated voltage Rated impedance 6.93 V, 70 V, 100 V 6 W 8 Ohm, 833 Ohm, 1666 Ohm 3 W N.A., 1666 Ohm, 3333 Ohm 1.5 W N.A., 3333 Ohm, 6666 Ohm 0.75 W N.A., 6666 Ohm, 13333 Ohm Electrical connections 2 two way screw terminal blocks Acceptable cable section 0.5 – 2 mm Description Ceiling speaker Diameter 88 mm (3.46 in) Mounting cutout 76 mm (2.99 in) Thickness min/max. from ceiling 5 to 25 mm (0.19 to 0.98 in) Maximum depth 78 mm (3.07 in) ABS material (V 0) Parts Included: 1 Ceiling Loudspeaker LC5?WC06E 1 Installation Instructions 1 Ceiling Hole Cutting Model
